1. Small size and easy installation: Air cooling makes the machine smaller and more flexible and convenient to install.
2. Excellent beam quality: This ensures precise marking results.
3. Maintenance-free: Fiber lasers are highly reliable and require no frequent maintenance, reducing the cost of ownership.
4. Energy-saving and environmentally friendly: The fiber laser marking machine boasts high electro-optical conversion efficiency and low energy consumption, which also reduces the energy consumption of the cooling system, making it more energy-efficient and environmentally friendly.
5. High processing efficiency: Computer control facilitates automated production, significantly improving processing efficiency.

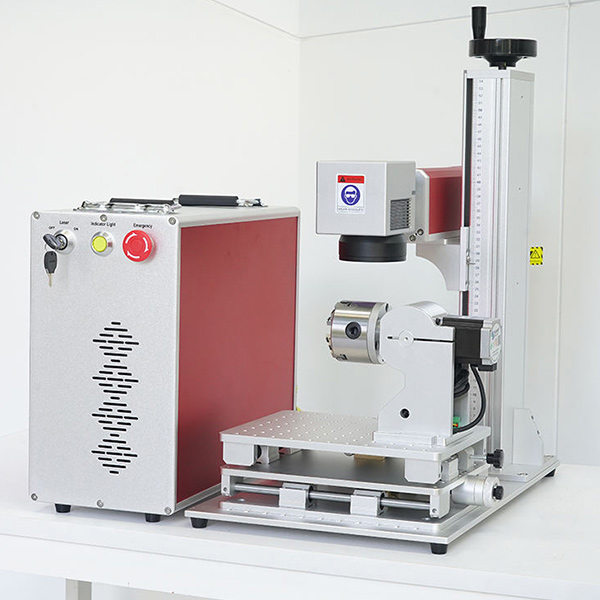

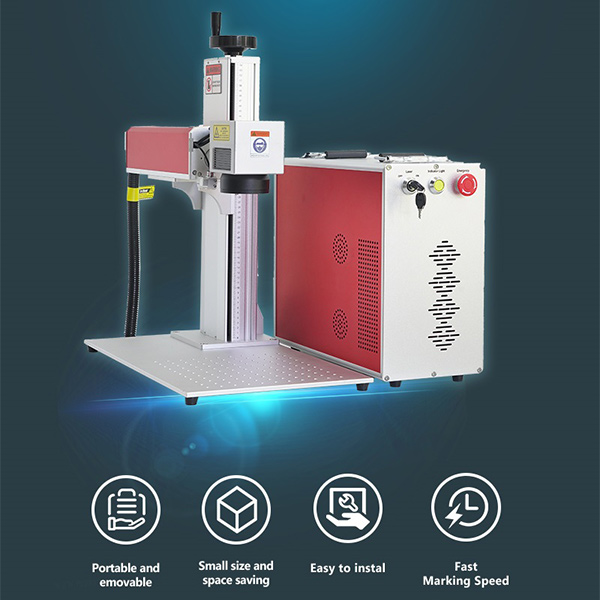

A fiber laser marking machine uses a fiber laser as a light source to permanently mark the surface of various materials with a laser beam.
Fiber laser marking machines are widely used to mark a variety of materials, including but not limited to metals, non-metals, plastics, and glass. Specific applications include electronics and communications products, integrated circuit chips, computer components, industrial bearings, watches, wire and cable, food packaging, jewelry, tobacco, and military applications. Fiber laser marking machines offer irreplaceable advantages in applications requiring high depth, smoothness, and precision, such as in the mold and bitmap marking industries.
| Product Name | Fiber Laser Marking Machine | Laser Source | JPT/Raycus/MAX Optional |
| Marking Speed | ≤8000mm/s | Minimum Line Width | 0.01mm(0.0004in) |
| Cooling Type | Air Cooling | Minimum Character | 0.2mm(0.008in) |
| Laser Wavelength | 1064nm | Power | 20w 30w 50w 60w 80w 100w |
| Max Marking Area | 300mm*300mm | Control Software | EZCAD |
| Electrical Requirements | 110V-240V/50Hz-60Hz | Optional Accessories | Rotary/2D worktable/Cutting fixture and so on. |
| Output Power Adjustment Range | 10%~100% | Supported Image Format | PLT,DXF,AI,BMP,JPEG,etc. |
| Mode of operation | Pulsed | Feature | 3D |
| Configuration | bench-top | cnc or not | Yes |
| Cooling System | Air Cooling | Marking Depth | >5mm |
| Working accuracy | 0.01mm | Marking Head Brand | SINOGALVO |
| Weight (kg) | 60 | Working area | 100*100mm/150*150mm/175*175mm/200*200mm/300*300mm Optional |
| Engraving materials | All metal and some non-metal | Communication Mode For Automation | TCP/IP , IO , RS232. |
This compact and versatile machine, designed for small studios, provides ample space for your creative needs.
Powered by a world-renowned laser source, it offers stable and reliable operation.
Powered by a world-renowned laser source, it offers stable and reliable operation.

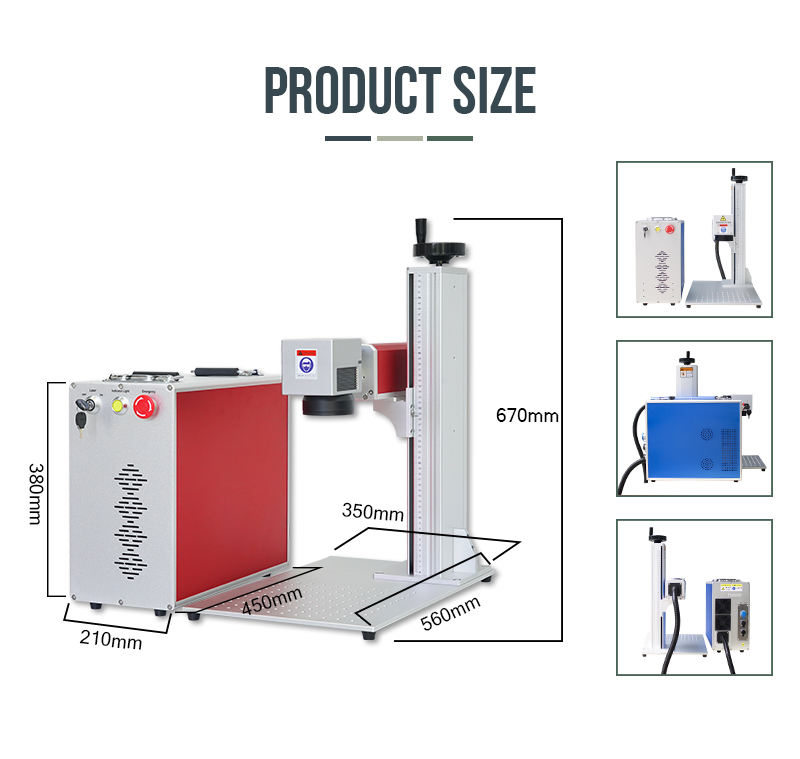

Our lens helps create vivid marks on flat surfaces and maintains a consistent focused spot size across its 560 x 350 mm working area.
A visible laser pointer makes focusing quick and easy. The scanning lens provides a clear, safe red light preview, allowing you to easily locate the pattern outline.
A visible laser pointer makes focusing quick and easy. The scanning lens provides a clear, safe red light preview, allowing you to easily locate the pattern outline.
The scanning system provides excellent accuracy and can mark flat surfaces quickly and stably at speeds of up to 8000 mm/s.
Aluminum Alloy open design with location hole, easy and accurate positioning.
Aluminum Alloy open design with location hole, easy and accurate positioning.
Laser marking machines can engrave names and serial numbers onto any product, tailored to your business needs. These machines can mark objects of various styles and designs. They can engrave a wide range of items, including metalworking, instruments, telecommunications, jewelry, circuits, medical devices, and plastic keys.
Compact and portable solution for permanent marking on metal surfaces including aluminum lids, cans, bottles, and oil/gas pipelines. Ideal for industrial identification needs.
The clean, integrated design allows for easy labeling, and the intuitive user interface and built-in wizards significantly reduce operator training and allow you to quickly master the tool in a variety of working conditions.
Just tell us your requirements, and we can do more than you can imagine.
We are committed to producing the best quality products at the most competitive prices. Therefore, we sincerely invite all interested companies to contact us for more information.
We will get back to you as soon as possible.
