1. Compatible With Multiple File Formats: support Coredraw, AutoCAD, Photoshop, PLT, PCX, DXF, BMP, etc. TTF fonts can be used directly.
2. Double Red Dot Focus: red auxiliary line and red dot for easy focusing. Self-developed configuration: Larger sensing range for automated docking.
Brand accessories: JPT MOPA M7 laser source, Jollystar and Opex F-Thea Len, JCZ-LMCV4 control board, Sino-Galvo scanner.
3. Quality Assurance: long service life, maintenance-free, low cost.
4. Simple Operation: free English user manual, VCD training video, and software.
A fiber laser marking machine uses a fiber laser as a light source to permanently mark the surface of various materials with a laser beam.
Fiber laser marking machines are widely used to mark a variety of materials, including but not limited to metals, non-metals, plastics, and glass. Specific applications include electronics and communications products, integrated circuit chips, computer components, industrial bearings, watches, wire and cable, food packaging, jewelry, tobacco, and military applications. Fiber laser marking machines offer irreplaceable advantages in applications requiring high depth, smoothness, and precision, such as in the mold and bitmap marking industries.
| Product Name | Fiber Laser Marking Machine | Laser Source | JPT/Raycus/MAX Optional |
| Marking Speed | ≤8000mm/s | Minimum Line Width | 0.01mm(0.0004in) |
| Cooling Type | Air Cooling | Minimum Character | 0.2mm(0.008in) |
| Laser Wavelength | 1064nm | Power | 20w 30w 50w 60w 80w 100w |
| Max Marking Area | 300mm*300mm | Control Software | EZCAD |
| Electrical Requirements | 110V-240V/50Hz-60Hz | Optional Accessories | Rotary/2D worktable/Cutting fixture and so on. |
| Output Power Adjustment Range | 10%~100% | Supported Image Format | PLT,DXF,AI,BMP,JPEG,etc. |
| Mode of operation | Pulsed | Feature | 3D |
| Configuration | bench-top | cnc or not | Yes |
| Cooling System | Air Cooling | Marking Depth | >5mm |
| Working accuracy | 0.01mm | Marking Head Brand | SINOGALVO |
| Weight (kg) | 60 | Working area | 100*100mm/150*150mm/175*175mm/200*200mm/300*300mm Optional |
| Engraving materials | All metal and some non-metal | Communication Mode For Automation | TCP/IP , IO , RS232. |
This compact and versatile machine, designed for small studios, provides ample space for your creative needs.
Powered by a world-renowned laser source, it offers stable and reliable operation.
Powered by a world-renowned laser source, it offers stable and reliable operation.
Our lens helps create vivid marks on flat surfaces and maintains a consistent focused spot size across its 560 x 350 mm working area.
A visible laser pointer makes focusing quick and easy. The scanning lens provides a clear, safe red light preview, allowing you to easily locate the pattern outline.
A visible laser pointer makes focusing quick and easy. The scanning lens provides a clear, safe red light preview, allowing you to easily locate the pattern outline.
The scanning system provides excellent accuracy and can mark flat surfaces quickly and stably at speeds of up to 8000 mm/s.
Aluminum Alloy open design with location hole, easy and accurate positioning.
Aluminum Alloy open design with location hole, easy and accurate positioning.
Slow and smooth manual adjustments allow you to tailor the machine to any task you require.
This metal laser marking and engraving machine is suitable for marking various metal materials and some rigid plastics. The marking software allows for precise control of output power and marking depth. The laser marking and engraving machine offers low operating costs and produces clear, long-lasting markings.

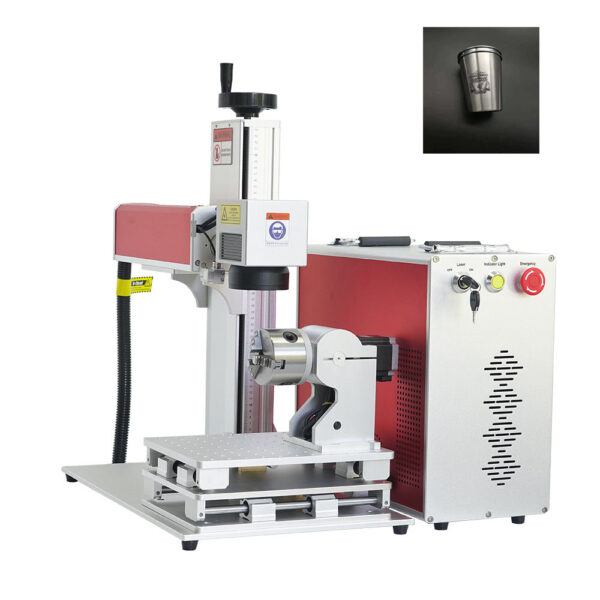

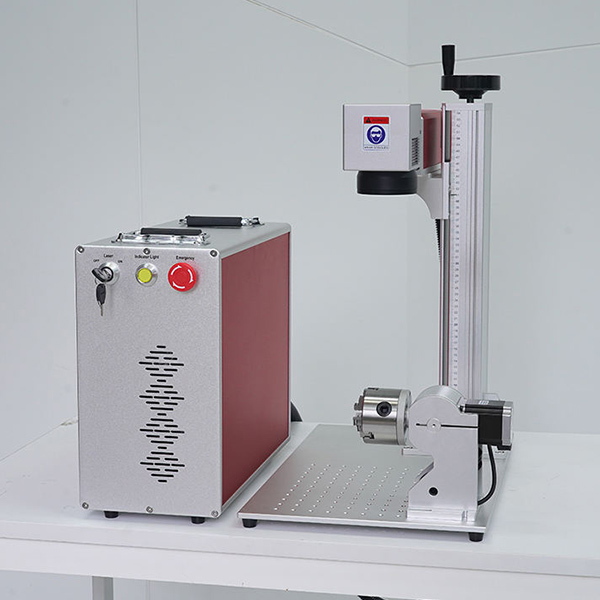

Desktop fiber laser marking machine with faster marking speed, more sophisticated engraving effect, 20W-100W output power, integrated module design, and maintenance-free.
The portable handheld fiber laser marking machine is an intelligent system designed for industrial applications. It can be used to mark oil and gas pipelines, firearms, nameplates, plastic and rubber parts, and seals. This lightweight solution supports Wi-Fi, Bluetooth, USB, and app-based wireless connectivity for remote control, making it ideal for IoT asset management.
