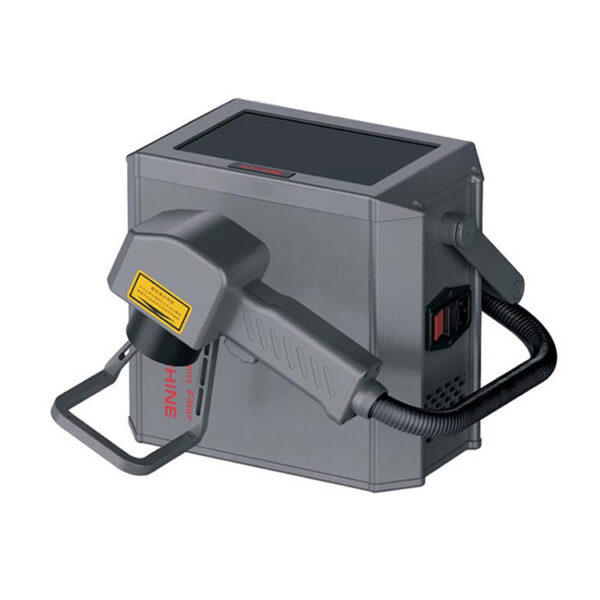

20W-100W Portable Laser Marking Machine
The Handheld Intelligent Laser Marker is a portable, battery-powered, and fully autonomous marking machine! Its powerful 24V rechargeable lithium battery provides 6-8 hours of continuous operation under normal use.
Its long battery life means it’s free from wires, eliminating the awkwardness of power outages during use. Its lightweight design and versatility make it ideal for marking large, heavy, or difficult-to-reach workpieces.
Features
- High-precision 2D scanning head with laser etching completed within 20s
- Compact design (≤6kg total weight, 0.8kg marking head) for portability
- Intuitive touch screen operation with red light preview and one-key marking
- Supports multiple barcode types including QR, CODE128, and Data Matrix
- Emergency stop function with material detection software for safety
- Rechargeable battery provides 4 hours working time (8 hours standby)
- Optional carrying solutions: dual shoulder straps or rolling luggage
- Remote control capability via Wi-Fi, Bluetooth, and USB connections
Product Paramater
| Material | Portable Laser marking | |
| Product Tags | Fiber Laser Marking Machine | |
| Laser Power | 20W/30W/50W/100W | |
| Laser Life | ＞100,000 hours | |
| Power Supply | 90V~240V 50/60HZ | |
| Power consumption | 300-500W | |
| Marking Range | 75X75mm(Standard) | |
| Optional | 150X150mm,300X300mm | |
| Parameter | 20W | 30W |
| Machine Material | All aluminum sandblasting oxidation | |
| Laser Wavelength | 1064nm | |
| Output Power | ≥23W | ≥34W |
| Marking Speed | ≤12000mm/s | |
| Controller | 10.2-inch touch controller | |
| Minimum Line Width | 0.012mm | |
| Marking Range | 110mm*110mm (optional) | |
| Power Supply | 220V/50HZ | |
| Net Weight | 8kg | |
| Operating Environment | 0℃－45℃; humidity ≤95% | |
More Details
Surface
The housing is constructed of sheet metal and coated with multiple layers of anti-rust paint, making it rust-resistant. The unit’s sturdy construction makes it less susceptible to damage during transportation.
Take peace of mind as a standard
A concise and large-sized color touchable screen provides intuitive icons and shortcuts to ensure user-friendly operation. Security functions can complete information easily through a standard USB port loading and Ethernet connection.
Take peace of mind as a standard
A concise and large-sized color touchable screen provides intuitive icons and shortcuts to ensure user-friendly operation. Security functions can complete information easily through a standard USB port loading and Ethernet connection.

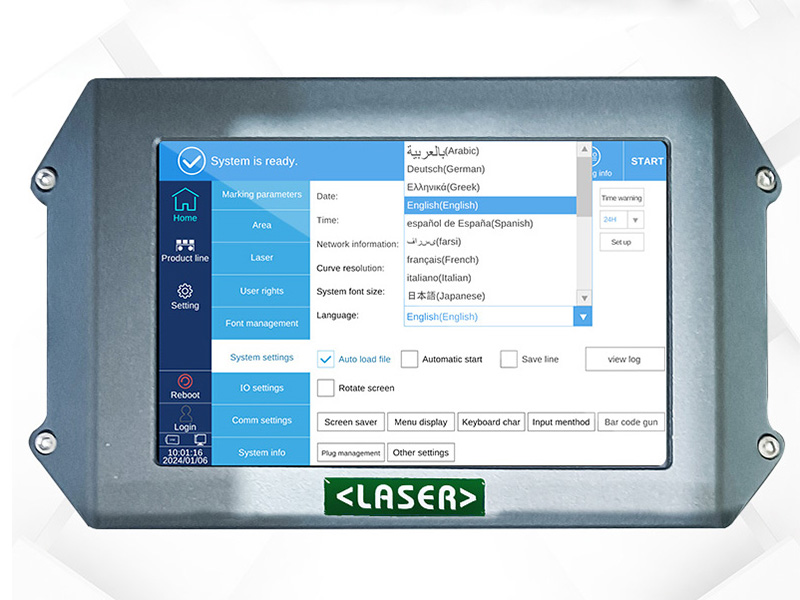

Support multi-language
Strong operating system,supports multi-languagesuitable for different countries and regions.

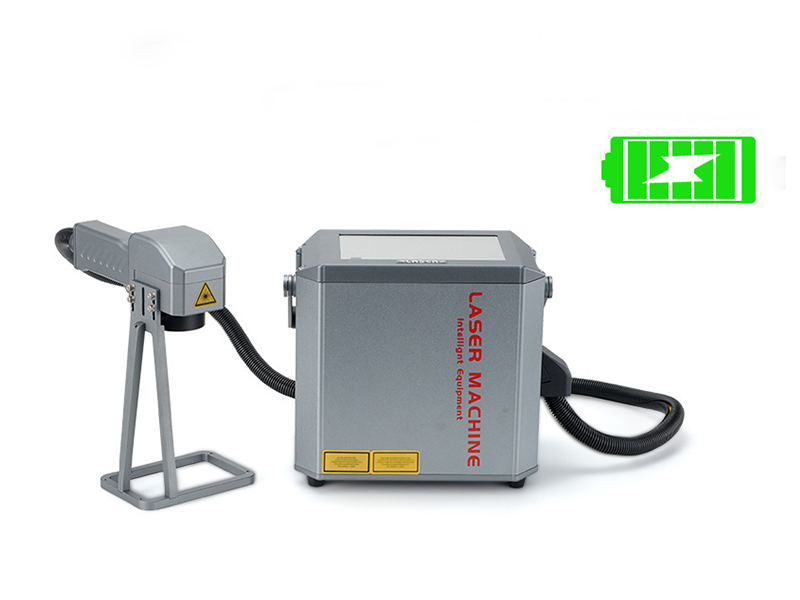

Plug-in and battery models available
The battery model can stand by for 5-6 hours
Plug-in and battery models available
The battery model can stand by for 5-6 hours

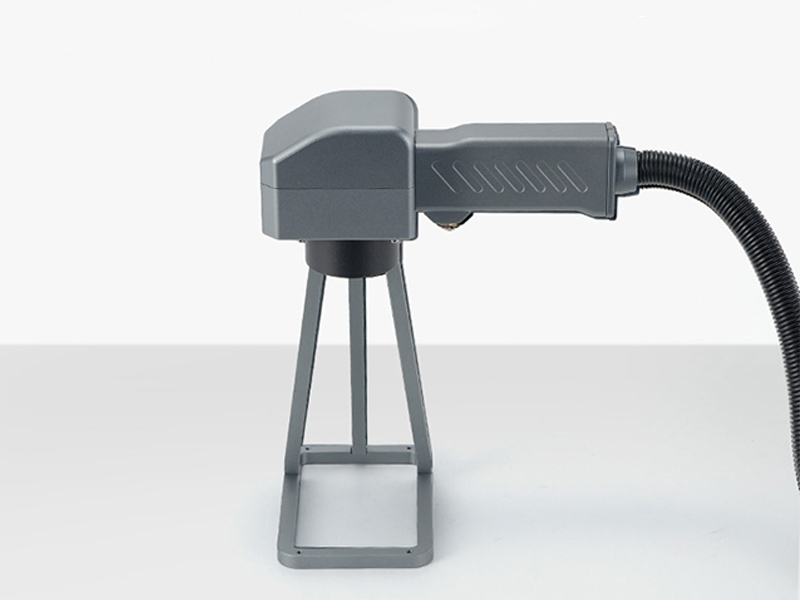

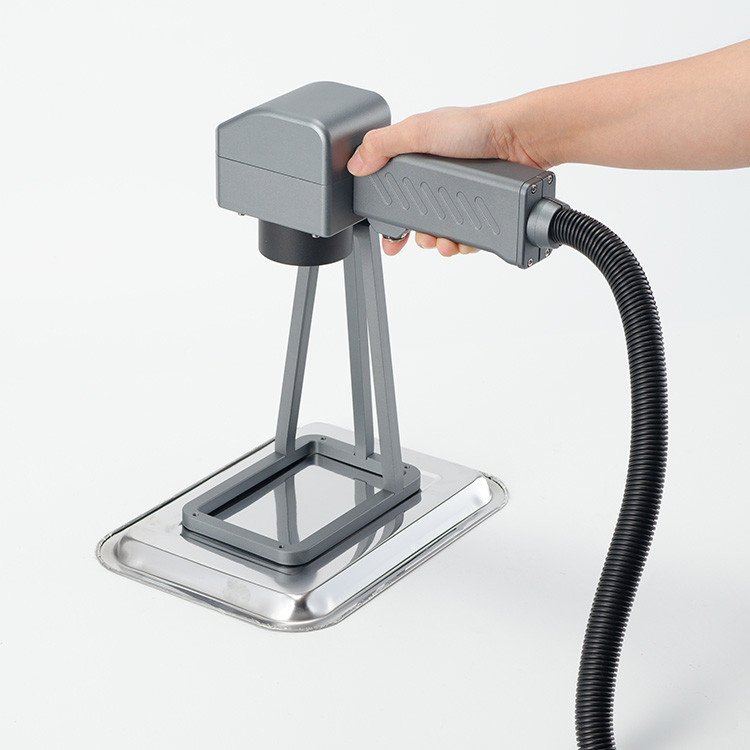

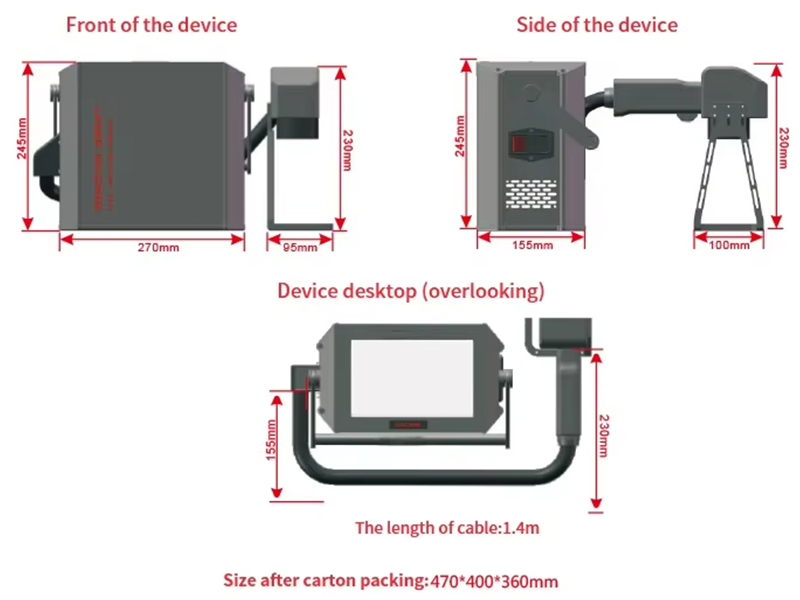

Portable Design
The machine body is only 8.25kg, the marking headis only 1.25kg
Marking Effect Display
