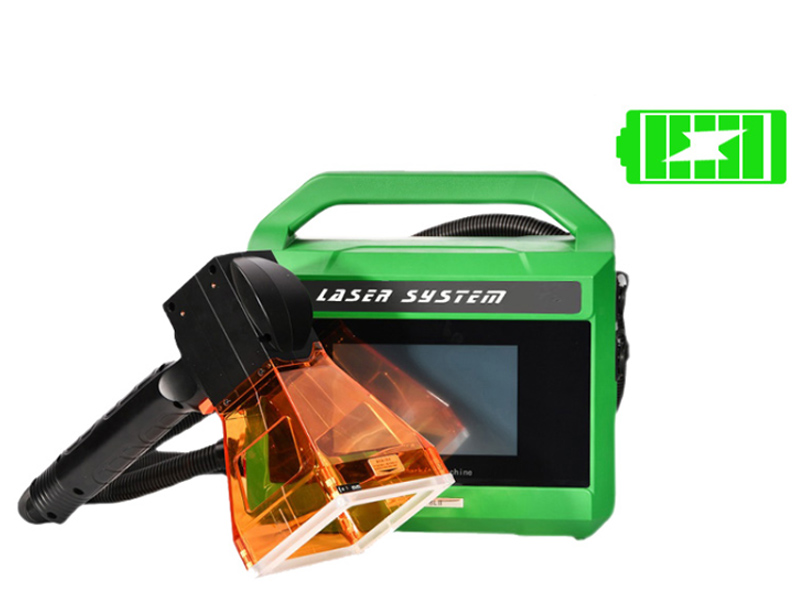

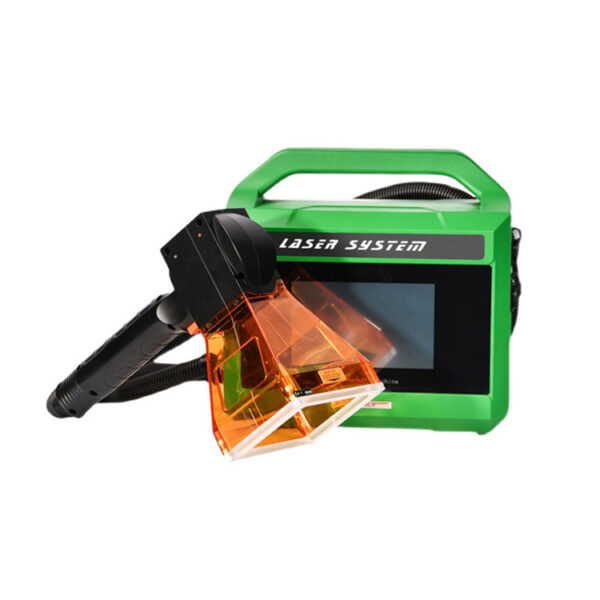

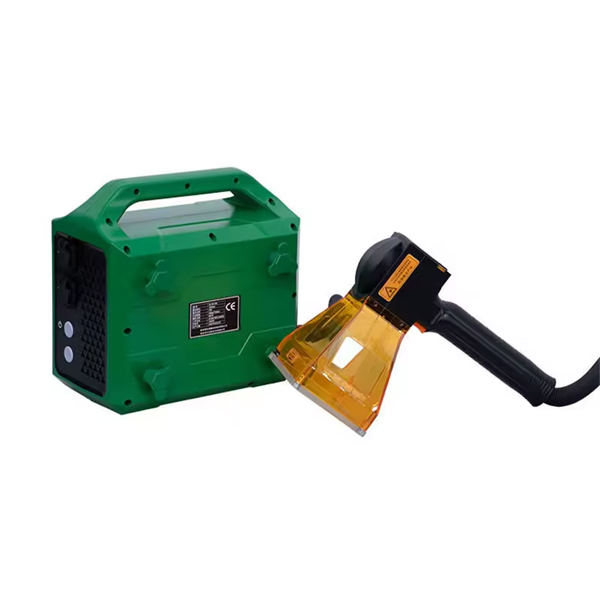

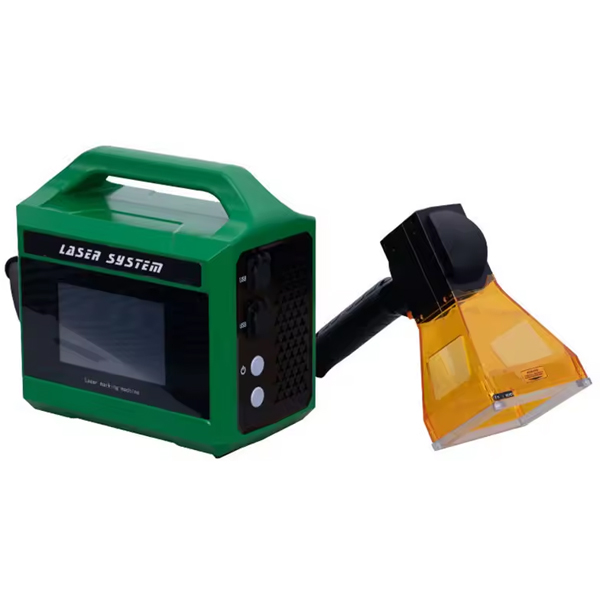

Battery High Power Laser Marking Machine
User-Friendly Operation: The handheld marking device features an ergonomic design for comfortable use.
Compact Size: Its mini, portable form factor ensures space-saving storage and ease of use.
Multiple Material Compatibility: Capable of accurately marking stainless steel and nameplates.
Portability: Its ultra-lightweight design makes transportation effortless and ideal for on-site marking applications.
Efficient Power: 20W/30W fiber laser output enables precise, high-quality marking on a variety of materials.
Features
The Battery Version Fiber Laser Engraving Machine offers exceptional mobility for laser marking and engraving applications. This portable solution enables easy etching of large, heavy, or fixed objects with professional results.
Advanced Features
- Produces smooth, clear, and permanent marks on metal surfaces
- Features the industry’s best electro-optical conversion rate
- Incorporates advanced laser generator technology
- Robust construction with stable power output
- Efficient air cooling system
- Ergonomic and portable design
Applications
The Portable Laser Engraving Machine is designed for marking on various materials, including metal, plastic, and rubber. Ideal for industrial applications such as:
- Oil and gas pipeline marking
- Firearms and ammunition identification
- Industrial nameplates and tags
- Plastic and rubber component marking
- Security seals and bolt identification
Product Paramater
| Attribute | Value | |
| Product Tags | Fiber Laser Marking Machine | |
| Laser Power | 20W/30W/50W | |
| Laser Life | ＞100,000 hours | |
| Power Supply | 90V~240V 50/60HZ | |
| Power Consumption | 300-500W | |
| Marking Range | 75X75mm (Standard) | |
| Optional | 150X150mm, 300X300mm | |
| Parameter | 20W | 30W |
| Machine Material | All aluminum sandblasting oxidation | |
| Laser Service Life | ＞100,000 hours | |
| Laser Wavelength | 1064nm | |
| Output Power | ≥23W | ≥34W |
| Marking Speed | ≤12000mm/s | |

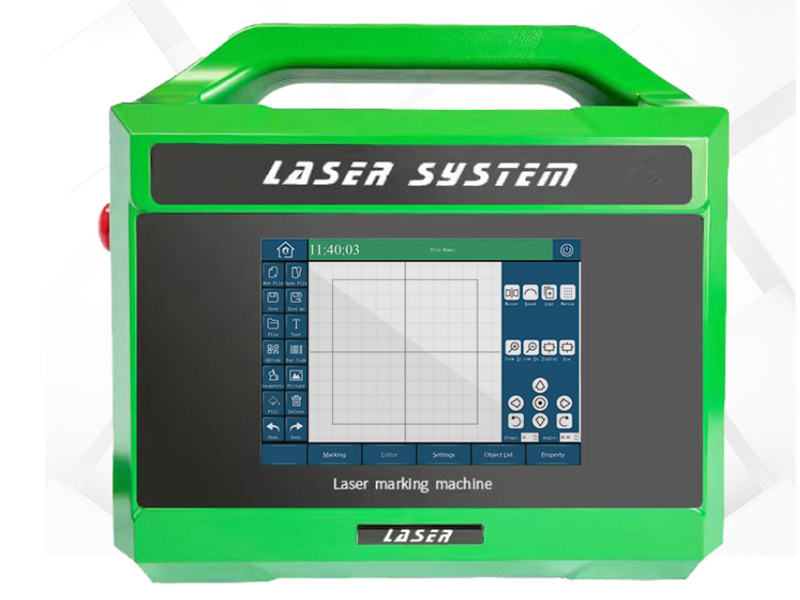

| Controller | 10.2-inch touch controller | |
| Cooling System | Air cooling | |
| Parameter | Specification | |
| Focus Lens | 165mm | |
| Minimum Line Width | 0.012mm | |
| Repetition Accuracy | 0.003mm | |
| Marking Range | 100mm*100mm (optional) | |
| Positioning Mode | Blue light indication | |
| Production Line Speed | 0~130m/min (material dependent) | |
| Languages | English, Spanish, German, Chinese, Russian, Arabic, etc. | |
| User Management | Multi-user authority system | |
| Operating System | Linux system | |
| File Formats | BMP/DXF/HPGL/JPEG/PLT | |
| Barcode Support | CODE39, CODE128, CODE126, QR | |
| Power Supply | 220V/50HZ | |
| Power Consumption | 200W | |
| Net Weight | 6kg | |
| Dimensions | 530mm × 140mm × 165mm | |
| Environment Requirements | Temperature: 0℃－45℃; Humidity ≤95% | |
More Details
Lightweight
Easy to carry, it’s about 6 kg.It’s suitable for marking large and heavy objects.
Support multi-language
Strong operating system,supports multi-languagesuitable for different countries and regions.
Support multi-language
Strong operating system,supports multi-languagesuitable for different countries and regions.
Plug-in and battery models available
The battery model can stand by for 5-6 hours

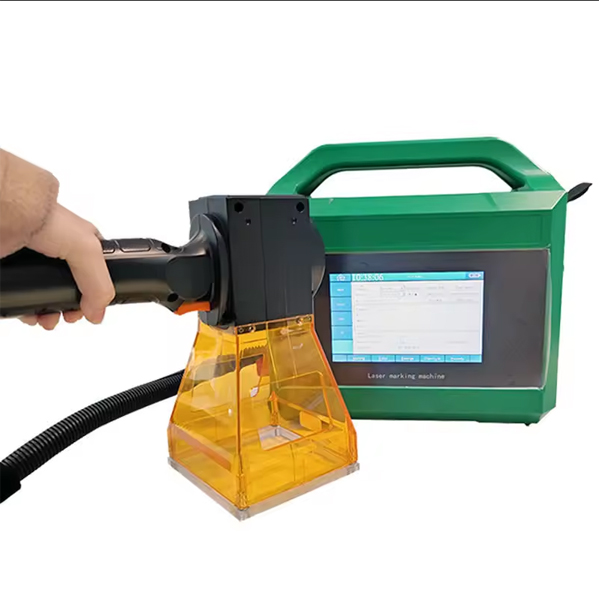

Portable Design

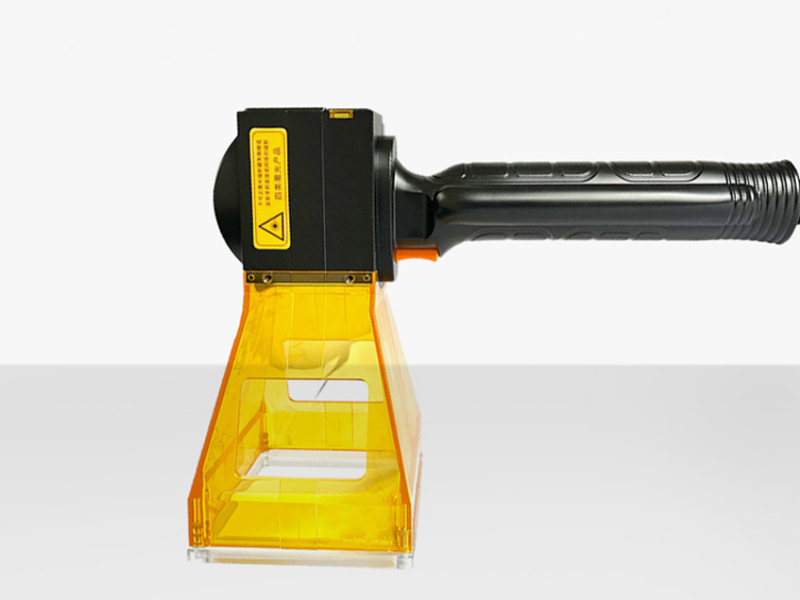

The machine body is only 9.8kg, the marking headis only 0.75kg.
Portable Design
The machine body is only 9.8kg, the marking headis only 0.75kg.
Marking Effect Display
